Graphing Service
{|RESULT|}#start graph with the {|GRAPH|} command
{|GRAPH|}
#indicates that our graph should be of type 'pie' (p)
graph/t/p
#graph should be 300 pixels wide
/w/300
#graph should be 300 pixels high
/h/300
#loop each answer option for question 1268 and add its count
#only display commas if there are more answer options to come
/d/{|LOOP|RESULT.QUESTION_1268(SORT=ORDER_NUM)}
{COUNT(QUESTION_1268)}{LOOP.HASNEXT?,}
{/|LOOP|}
#indicates color scheme for graph
/c/803380,f1e09d
#apikey required for authentication
?apikey={CONFIG.PDF_API_KEY}
#adds labels to the pie slices
#this is in the query string to avoid character encoding issues
&l={|LOOP|RESULT.QUESTION_1268}
{QUESTION_1268.NAME.FUSIONSAFE}{LOOP.HASNEXT?,}
{/|LOOP|}
#title for graph, URL encoded
&n=Was%20this%20the%20best%20donut%20that%20you%20sampled%20today%3F
{/|GRAPH|}
{/|RESULT|}

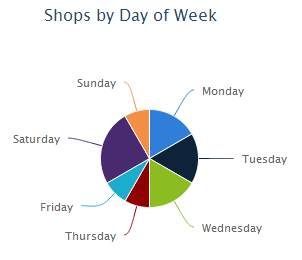

HighCharts
<div id="my-graph">{|HIGHCHARTS|}
{
#graph title
"title": {
"text": "Title",
"x": -20
},
#graph should be 300x300 pixels
"chart": {
"height": 300,
"width": 300
},
#remove 'highcharts' label from graph
"credits": {
"enabled": false
},
#our actual data
"series":
[
{
"type": "pie",
"name": "Count",
"data":
[
{|RESULT|}
{|LOOP|RESULT.DAY_OF_WEEK}
[
#label for pie slice - HC_SAFE_STRING handles escaping quotes
"{DAY_OF_WEEK.NAME.HC_SAFE_STRING}",
#actual data - HC_SAFE_NUMBER handles null values
{COUNT(DAY_OF_WEEK).HC_SAFE_NUMBER}
]{LOOP.HASNEXT?,}
{/|LOOP|}
{/|RESULT|}
]
}
]
}
{/|HIGHCHARTS|}
</div>
